Quantity
|
Cost
|
||
|
|
|||
|
|
|||

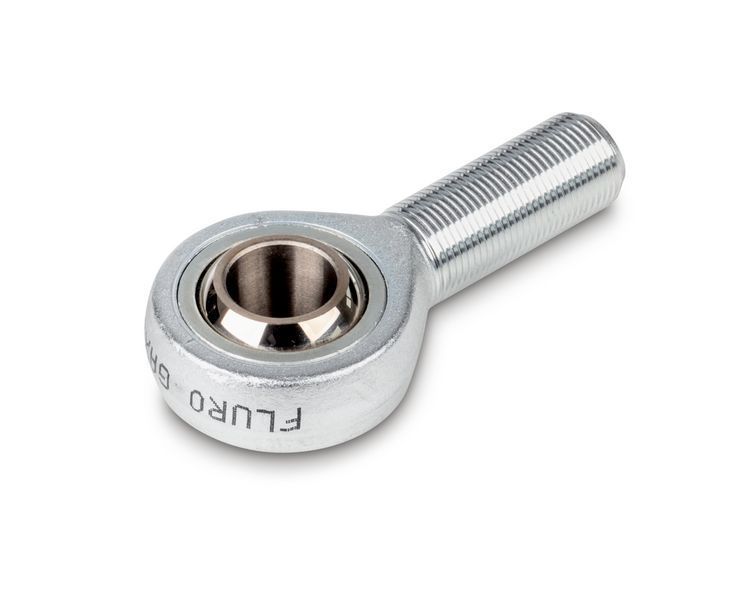

Rod end with M16-thread, galvanised steel, only suitable for models with a nominal load of 1500–2000 kg
Article number for factory calibration: 961-131
Material housing: cast aluminium
Dimension housing (W×D×H): 132×82×31 mm
Dimension housing (Width): 132 mm
Dimension housing (Depth): 82 mm
Dimension housing (Height): 31 mm
Display type: LCD graphic
Display digit height: 11 mm
Units: HL; HV; HB; HRB; HRC
Supplied power supply: Battery
Battery / accumulator type: Alkali(-Manganese)
Auto-off interval(s) in battery mode/rechargeable battery mode: 0,5 - 60 min
Battery: 2×1.5 V AA
Battery operating time: 200 h
Interfaces: USB-Device
Ambient temperature [Min] (°C): -10 °C
Ambient temperature [Max] (°C): 40 °C
Gross weight: 1,6 kg
Net weight: 0,45 kg
UN number (hazardous goods): Drycell (Alkalines, nickel-cadmium, zinc-carbon, Packing instruction #1, Not Restricted as per Special Provision A123)
Airworthy: yes, with dispatch instructions (in accordance with IATA classification)
Shipping method: Parcel service
Dimensions packaging (W×D×H): 370×220×87 mm
Dimensions packaging Width: 370 mm
Dimensions packaging Depth: 220 mm
Dimensions packaging Height: 87 mm
Total packaging weight: 1090 g
Packaging component carton/cardboard: 165 g
Packaging component plastic: 40 g
Packaging component Styrofoam: 545 g
Packaging component foam: 20 g
Tolerance (% of [Max]): 1%
Hardness scales: HLD
Measuring probe diameter: 2 cm
Leeb Hardness Tester sensor type: D
Measuring range [Min] (HLx): 170
Measuring range [Max] (HLx): 960
Readability [d] hardness (Hlx): 1
Pictograms Standard: Device-internal Memory; Data Interface USB; Statistics function; Units switchable; Measuring with tolerance range (checkweighing function); Prepared for battery operation; Package shipment 1 day
Pictograms Option: Calibration block included; PC software; Factory calibration (ISO)
Accessories: AHMO D02; AHMR DL; AHMR D; AHMO D03; AHMR 01; AHMR G; AHMO D04; AHMR D+15; AHMO D01; FL-A01; AHMR C
