HVAC Technician Combo Kit with Multimeter and Infrared Thermometer
The Fluke 116/62 MAX+ Technician's Combo Kit is specifically curated for HVAC service engineers and heating system technicians. Combining the Fluke 116 True-RMS HVAC Multimeter with the rugged Fluke 62 MAX+ Dual-Laser Infrared Thermometer, this set provides a complete solution for electrical testing, flame sensor verification, and non-contact temperature diagnostics under CAT III 600 V safety parameters.
Industrial Use Cases
- Heating and Burner Maintenance: Testing flame sensor current down to 0.1 uA using the dedicated microamp range on the Fluke 116 multimeter.
- HVAC System Thermal Diagnostics: Non-contact surface temperature checks from -30 °C to 650 °C with dual-laser targeting on ductwork, compressors, and heat exchangers.
- Control Board and Circuit Troubleshooting: Eliminating false readings caused by ghost voltage using AutoV/LoZ mode and measuring run capacitors up to 9999 uF.
Key Specifications
| Parameter | Fluke 116 Multimeter | Fluke 62 MAX+ IR Thermometer |
|---|---|---|
| AC/DC Voltage | Up to 600.0 V True-RMS | N/A |
| Current Measurement | 600.0 uA AC/DC (0.1 uA resolution) | N/A |
| Temperature Range | -40 °C to 400 °C (Thermocouple) | -30 °C to 650 °C (Non-contact IR) |
| Optical Resolution / Accuracy | N/A | 12:1 distance-to-spot / +-1.0 °C or +-1.0% |
| Resistance / Capacitance | Up to 40.00 MΩ / Up to 9999 μF | N/A |
| Protection & Safety | CAT III 600 V | IP54 water/dust proof, 3 m drop tested |

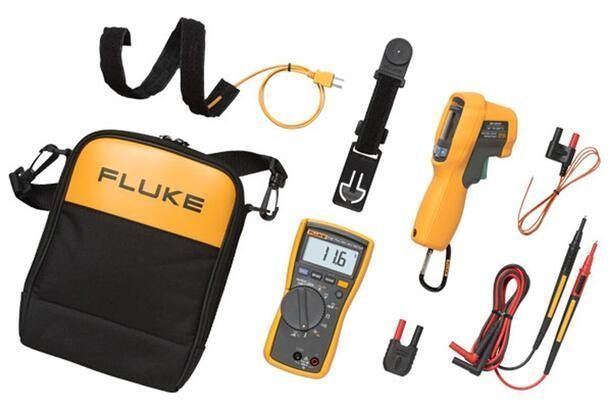

Package Contents
- Fluke 116 HVAC True-RMS Multimeter
- Fluke 62 MAX+ Dual Laser Infrared Thermometer
- 80BK-A DMM Thermocouple Temperature Probe
- TL75 Hard Point Test Lead Set
- C115 Soft Carrying Case
- Installed 9 V Battery (Fluke 116) and AA Battery (Fluke 62 MAX+)
