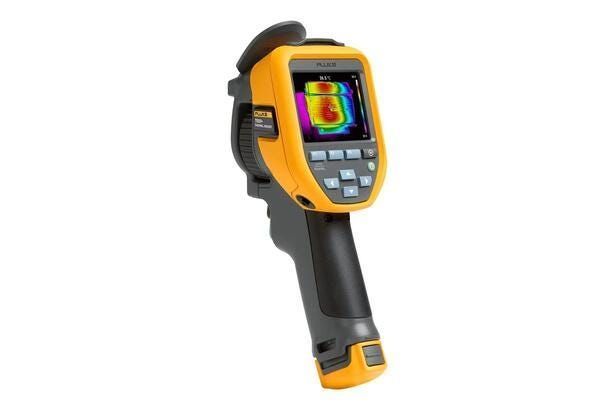

Thermal Camera Fluke TiS55+ 27HZ 256x192 550 C
The Thermal Camera Fluke TiS55+ 27HZ 256x192 550 C is a professional handheld infrared imaging tool engineered for demanding industrial environments. Equipped with an infrared resolution of 256 x 192 pixels, this Fluke TiS55+ thermal imager enables precise non-contact temperature measurements up to 550 °C. The device features integrated IR-Fusion technology, voice annotation, and Asset Tagging to streamline predictive maintenance workflows and eliminate manual note-taking.
Application field
- Industrial predictive maintenance and electrical troubleshooting
- HVAC and facility management inspection
- Mechanical equipment temperature monitoring
- Building envelope diagnostics and insulation analysis
Specifications
| Infrared Resolution | 256 x 192 (49,152 pixels) |
| Spectral Range | 8-14 um |
| Temperature Measurement Range | -20 °C to 550 °C |
| Accuracy | ±2 °C or 2 % |
| Thermal Sensitivity (NETD) | 40 mK |
| Field of View (FOV) | 28° x 20° |
| Spatial Resolution (IFOV) | 1.91 mRad |
| Frame Rate | 27 Hz |
| Focus Mechanism | Manual and fixed focus |
| Minimum Focus Distance | 0.15 m |
| Display | 3.5 inch (8.9 cm) touchscreen 640 x 480 LCD |
| Digital Camera | 5 MP |
| IR-Fusion Technology | AutoBlend continuous 0 % to 100 % |
| Wireless Connectivity | Wi-Fi, LAN, Fluke Connect app compatible |
| Asset Tagging | QR code scan via Fluke Connect |
| Voice Annotation | Max 60 seconds per image via Bluetooth |
| Memory | Internal ~500 images, External >=4 GB micro SD card |
| Battery Type | Lithium-ion rechargeable smart battery |
| Battery Life | >=3.5 hours continuous (without Wi-Fi) |
| Drop Test | 2 meters |
| Ingress Protection | IP54 |
| Weight | 0.885 kg |
Package contents
- Fluke TiS55+ Thermal Imager
- AC power supply with universal adapters
- Rugged lithium-ion smart battery
- USB cable
- 4 GB micro SD card
- Rugged hard carrying case with soft transport bag and adjustable hand strap
- Free download Fluke Connect software
