Three-Phase Electrical Energy Loggers Fluke 1732 and 1734 CAT IV 1000V
Description

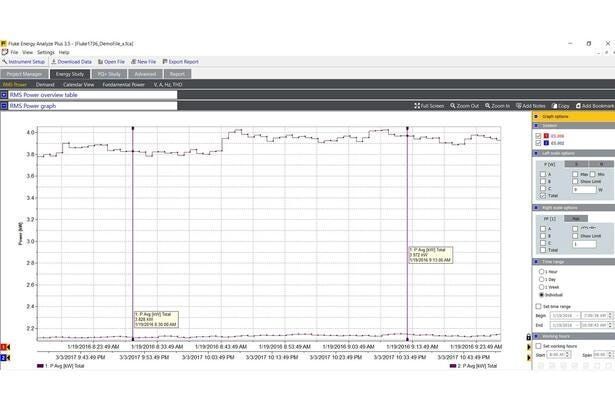

The Three-Phase Electrical Energy Loggers Fluke 1732 and 1734 CAT IV 1000V deliver essential power logging capabilities for identifying sources of electrical energy waste across industrial and commercial facilities. Featuring direct powering from the measurement circuit and a high-safety CAT IV 600V / CAT III 1000V rating, the Fluke 1732 and 1734 simplify data acquisition through an intuitive color touchscreen interface and automated Energy Analyze Plus software reporting.
Application Area
Application area of Three-Phase Electrical Energy Loggers Fluke 1732 and 1734 CAT IV 1000V: Engineered for facility managers, energy auditors, and plant electricians performing long-term load studies, energy usage profiling, and remote cloud data sharing via the Fluke Connect app to maintain safe working distances from live panels.
Specifications
| Voltage Measurement Range | 1000 V (Resolution 0.1 V, Accuracy ±(0.2% + 0.01%)) |
| Current Measurement Range | 1 A to 6000 A (via thin flexible iFlex current probes) |
| Auxiliary Inputs | 2 inputs, 0 to ±10 V DC |
| Data Acquisition | 16-bit synchronous sampling at 10.24 kHz |
| Circuit Topologies | 1-φ, 1-φ IT, Split phase, 3-φ delta, 3-φ wye, 3-φ Aron/Blondel |
| Wireless Connectivity | Wi-Fi, Bluetooth (Fluke 1734 standard, 1732 optional) |
| Safety Rating | IEC 61010-1 CAT IV 600 V / CAT III 1000 V |
| Display | 4.3-inch active matrix TFT color touchscreen (480 x 272) |
| Dimensions / Weight | 198 x 167 x 90 mm (with power supply) / 1.1 kg |
| Power Supply | 100 V to 500 V self-powering from circuit, Li-ion battery (4h runtime) |
Package Contents
- Energy Logger Fluke 1732 or Fluke 1734
- Power Supply Attachment
- 3 Flexible Current Probes i17xx-flex 1500 12 in
- Voltage Test Lead Set
- Alligator Clips
- Soft Storage Case
- Energy Analyze Plus Software CD/USB
- User Manual
