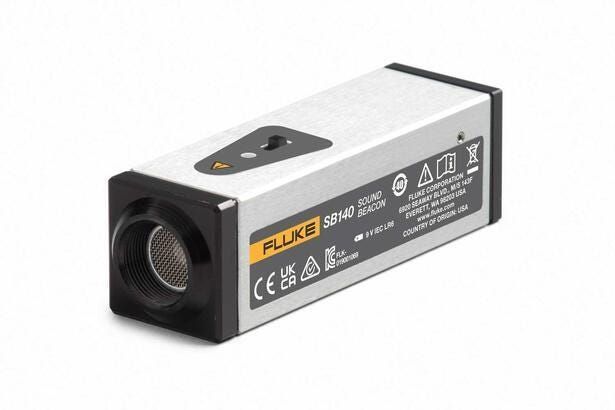

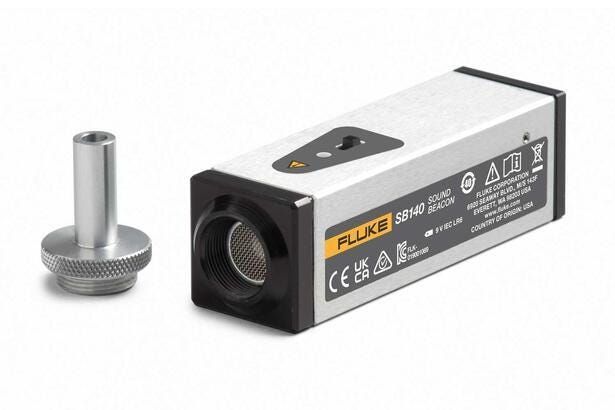

Ultrasonic Transmitter Fluke SB140 SoundBeacon 40kHz IP40
Description
The Ultrasonic Transmitter Fluke SB140 SoundBeacon 40kHz IP40 is a specialized testing device engineered to optimize tightness testing and leak detection in non-pressurized volumes. By placing the Fluke SB140 SoundBeacon inside an enclosure, it emits a targeted 40 kHz ultrasound signal that escapes through fine cracks, faulty seals, or bad weld seams. When paired with Fluke acoustic imagers operating in Beacon Mode, this system allows operators to visually pinpoint exact leak locations from the outside with total accuracy.
Application Areas
Designed for quality assurance inspectors, automotive technicians, aerospace engineers, and facility managers. Typical usage scenarios include:
- In-line auto window, door, and EV battery compartment tightness testing
- Aircraft cabin, window, fuel tank, and pitot-static system integrity inspection
- Cleanroom containment seal verification and regulatory compliance checks
- Cargo container tightness testing in maritime transport to prevent water damage
- Building envelope, window, door, and façade acoustic soundproofing inspection
Specifications
| Sound Frequency | 40 kHz ± 1.5 kHz |
| Operating Temperature | -20 °C to +54 °C |
| Storage Temperature | -40 °C to +55 °C (without battery) |
| Relative Humidity | 10 to 95 % non-condensing |
| Ingress Protection | IEC 60529: IP40 |
| Housing Material | Extruded aluminum |
| Dimensions | 32 mm x 32 mm x 105 mm |
| Weight (with battery) | 175 g |
| Acoustic Probe Weight | 12 g |
| Battery Life | > 300 hours |
| Power Supply | 9V alkaline battery (included) |
| Controls | On-off switch |

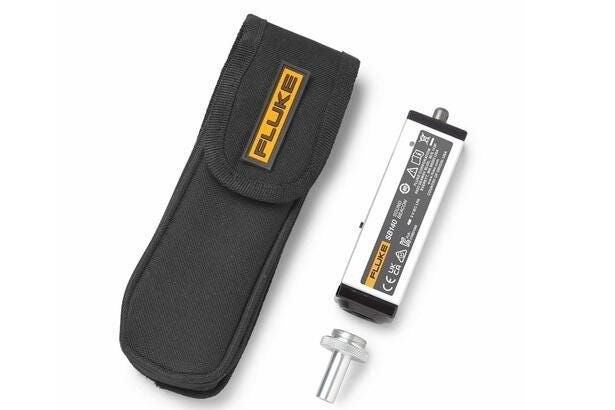

Package Contents
- Fluke SB140 SoundBeacon ultrasonic transmitter
- 9V alkaline battery
- Acoustic probe attachment
- User manual
