Voltage, Continuity, and Current Tester Kit with Proving Unit

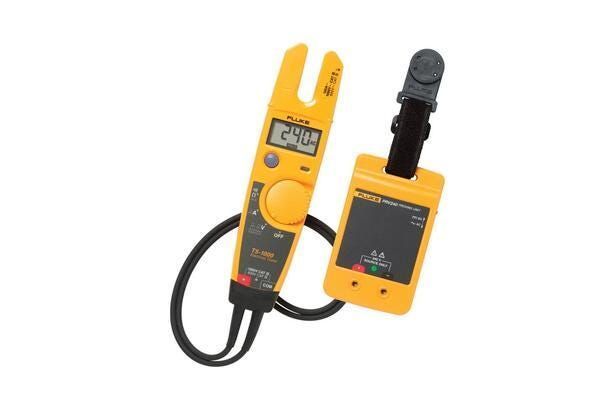

The Fluke T5-1000 / PRV240 Proving Unit Kit is an essential safety and testing combination designed for industrial electricians and field technicians. The system includes the compact Fluke T5-1000 electrical tester featuring OpenJaw technology for non-contact current measurement up to 100 A, along with the Fluke PRV240 proving unit to verify tester functionality without exposing personnel to live high-voltage sources.
Industrial Use Cases
- Live Voltage Verification: Verifying functional operation of the T5-1000 tester against the PRV240 proving unit before and after checking live 1000V electrical panels.
- Compact Current Measurement: Measuring AC current up to 100 A in tight junction boxes and control cabinets using OpenJaw fork design without breaking circuit connections.
- Continuity and Resistance Diagnostics: Fast continuity check and resistance evaluation on industrial wiring, fuses, and relay contacts.
Key Specifications
| Parameter | Fluke T5-1000 Tester | Fluke PRV240 Proving Unit |
|---|---|---|
| Voltage Measurement | Up to 1000 V AC / DC | Outputs 240 V DC / AC rms |
| Current Measurement | Up to 100.0 A AC (OpenJaw) | N/A |
| Continuity / Resistance | Continuity beeper / Up to 1000 ohm | N/A |
| Safety Rating | CAT III 1000 V / CAT IV 600 V | CAT III 1000 V / CAT IV 600 V |
| Power Source | 2 x AA batteries | 4 x AA batteries |
Package Contents
- Fluke T5-1000 Voltage, Continuity and Current Tester
- 4 mm detachable probe tip covers
- Two installed AA batteries for T5-1000
- Fluke PRV240 Proving Unit
- TPAK magnetic hanging strap
- Four AA batteries for PRV240
- Instruction sheets
