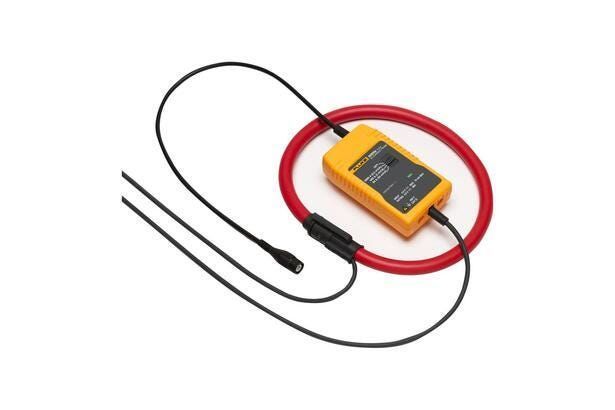

Flexible AC Current Probe Fluke i6000sFlex-24 6000A 610mm BNC CAT III 600V
Description
The high-capacity Flexible AC Current Probe Fluke i6000sFlex-24 6000A 610mm BNC CAT III 600V utilizes advanced Rogowski principle technology for non-intrusive high-current measurement. Designed to measure AC currents up to 6000 A rms, the Fluke i6000sFlex-24 features three selectable measurement ranges (60 A, 600 A, and 6000 A) and a lightweight flexible 610 mm measuring head. Connecting directly to oscilloscopes, recorders, and data loggers via a safety BNC connector with a supplied 4 mm safety adapter, this professional oscilloscope current probe ensures superior measurement precision and high electrical safety rated CAT III 600 V.
Application field
Applications and scenarios:
- Non-intrusive measurement of high AC currents in heavy industrial power distribution networks
- Waveform observation and power quality diagnostics using oscilloscopes and data loggers
- Troubleshooting large industrial transformers, busbars, and high-power motor drives
- Field service diagnostics in crowded electrical cabinets with tight conductor spacing
Specifications
| Parameter | Value |
| Current Ranges | 60 A / 600 A / 6000 A AC rms |
| Output Sensitivity | 50 mV/A / 5 mV/A / 0.5 mV/A |
| Basic Accuracy (45 Hz to 65 Hz) | ±1% of range |
| Linearity (10% to 100% of range) | ±0.2% of reading |
| Frequency Range | 10 Hz to 50 kHz (-3 dB) |
| Head Cable Length / Diameter | 610 mm (24 in) / 14.3 mm |
| Cable Length (head to electronics) | 2 m |
| Output Connection | 0.5 m cable with safety BNC connector and 4 mm safety plug adapter |
| Power Supply / Battery Life | 2 x AA Alkaline (LR6), 400 hours or ext power supply |
| Safety Rating | BS EN 61010-1, BS EN 61010-2-032: 600 Vrms CAT III |
Package contents
- Flexible AC Current Probe Fluke i6000sFlex-24
- BNC to 4 mm safety plug adapter
- 2 x AA Alkaline batteries
- User documentation
