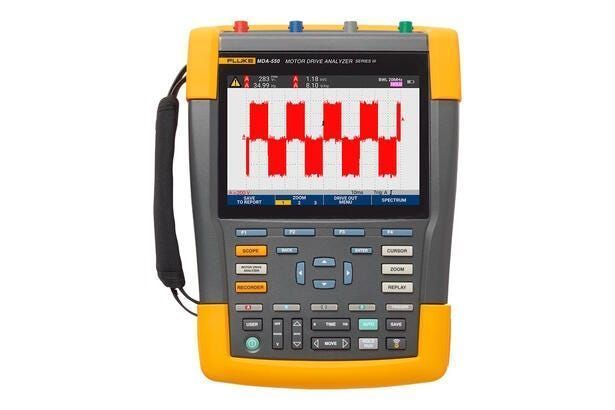

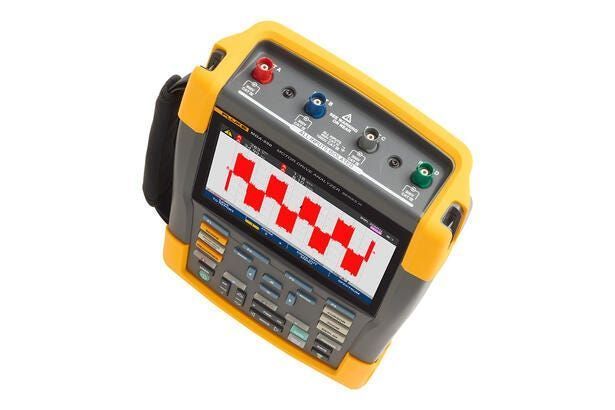

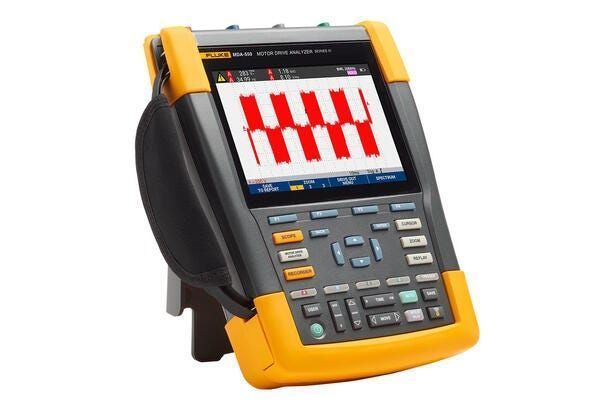

Handheld Motor Drive Analyzer Fluke MDA-550 Series III 500 MHz

Description

The Handheld Motor Drive Analyzer Fluke MDA-550 Series III 500 MHz simplifies complex motor-drive troubleshooting with guided test setups and automated drive measurements. Equipped with a full 500 MHz oscilloscope function, the Fluke MDA-550 Series III performs motor shaft voltage discharge testing and extended harmonics analysis from DC up to 150 kHz, allowing technicians to locate destructive electrical issues before premature equipment failure occurs.

Application Scope

  • Troubleshooting three-phase and single-phase inverter-type motor-drive systems
  • Measuring motor shaft voltage discharges to prevent bearing damage
  • Evaluating drive input power quality, voltage modulation, and V/F ratios
  • Performing extended harmonics measurements across industrial electrical distribution networks

Specifications

ParameterSpecification
Oscilloscope Bandwidth500 MHz
Safety RatingCAT IV 600 V / CAT III 1000 V
Harmonics Measurement Range1st to 51st, 1-9 kHz, 9-150 kHz
Max Input Voltage1000 V (with 10:1 or 100:1 probe)
Shaft Voltage ProbeIncluded carbon fiber brush probe
ReportingBuilt-in report generator via FlukeView-2
Data StorageUSB Host Port (up to 32 GB), WiFi support
Protection RatingIP51 dust and drip-proof

Package Contents

  • Handheld Motor Drive Analyzer Fluke MDA-550 Series III
  • Voltage Probes and Current Clamps Set
  • Carbon Fiber Brush Shaft Voltage Probe Tip
  • BP291 Li-Ion Battery Pack
  • Universal Power Adapter BC190/830
  • Carrying Case and FlukeView Software
