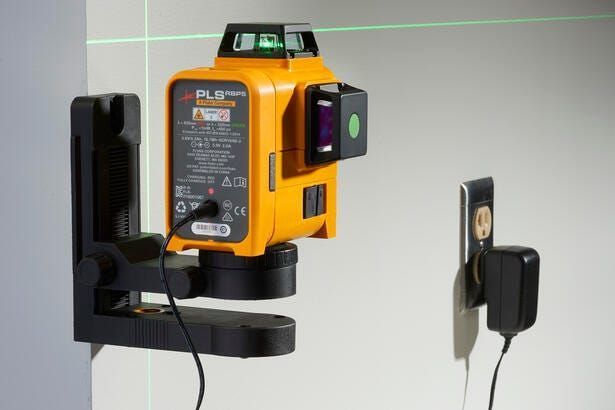

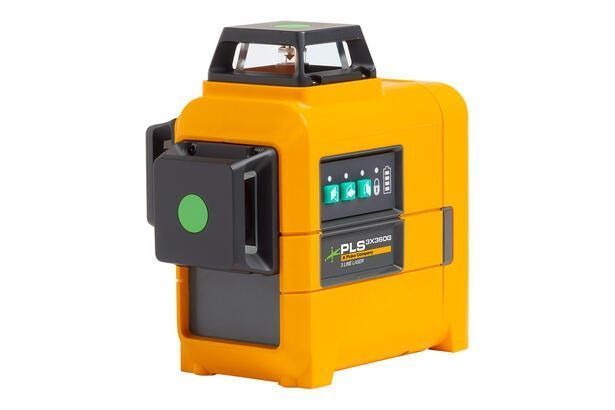

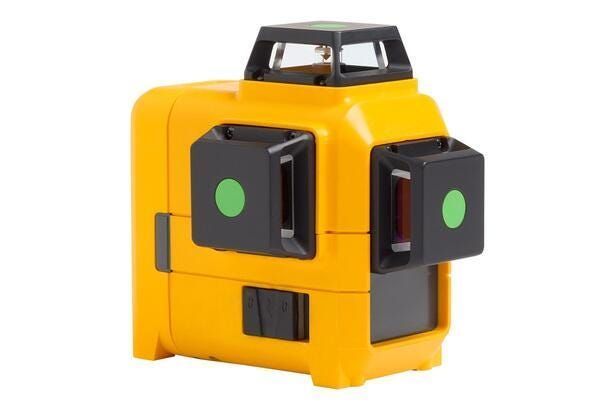

Three-Plane Green Laser Level PLS 3x360G IP54 Li-Ion
Description
The PLS 3x360G is a high-precision three-plane green laser level designed for comprehensive 360-degree alignment, leveling, and squaring tasks. Projecting three continuous 360-degree laser lines (one horizontal and two vertical), the PLS 3x360G delivers exceptional precision with an accuracy of 2 mm at 10 m. Built with a fast-settling automatic pendulum lock system, rugged IP54 housing, and a rechargeable 5200 mAh Li-Ion battery pack, this versatile tool guarantees structural integrity and long operating times on demanding job sites.
Application Scope
Engineered for commercial construction, interior fitting, and framing contractors:
- Installing wall studs, acoustic drop ceilings, and large format ceramic tiles with 3D reference lines
- Squaring layout walls, partitions, and structural frames using full 360-degree vertical planes
- Executing floor-to-ceiling alignment, plumbing, and interior finishing projects
Specifications
| Parameter | Value |
| Laser Beam Color | Green (520 nm +- 10 nm, Class 2, <1 mW) |
| Accuracy | 2 mm @ 10 m (5/64 in @ 33 ft) |
| Line Coverage | 3 x 360 deg (1 Horizontal, 2 Vertical) |
| Working Range | 35 m (65 m with line detector) |
| Leveling System | Automatic Pendulum (Self-leveling range <= 4 deg) |
| Protection Rating | IP54 (dust and splash water resistant) |
| Power Supply | Lithium-Ion 3.6V 5200 mAh (RBP5) |
| Battery Life | 3 beams: >= 5 hours, 1 beam: <= 17 hours |
| Dimensions and Weight | 13.0 x 9.09 x 13.33 cm, 0.8 kg |

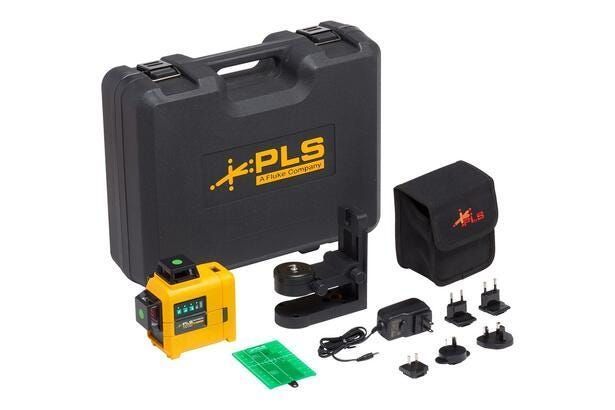

Package Contents
- PLS 3x360G Green Laser Level
- Rechargeable Li-Ion Battery Pack
- Power Supply and Charging Adapter
- Magnetic L-Bracket
- Green Reflective Target
- Canvas Pouch
- Blow Mold Case
- User Manual
